Condensation Cure Mold Making Silicone Rubber For Pillar Molds
Description of Condensation Cure Silicone Rubber For Pillar Molds
Silicone rubber MCSIL-2030 is a two-component material, consisting of Part A base silicone and Part B curing agent, cures at room temperature by a condensation reaction.
PRODUCT FEATURES of Condensation Cure Silicone Rubber For Pillar Molds
1. Good flow ability and long working time
2. Excellent performance for duplication
3. High tear and tensile strength
4. Easy de-mould from complex replica parts
5. Acid and alkali-resistance
6. Low linear shrinkage
Technical Data of Condensation Cure Silicone Rubber For Pillar Molds
| Item No. | MCSIL-2030 |
| Color | White |
| Curing Agent | C520 |
| Mixing ratio | 100:5 |
| Mixed Viscosity | 25000cps |
| Working time | 30-40mins |
| Curing time | 4-6 hours |
| Hardness | 30±2 shore A |
| Tear Strength | 30N/mm |
| Tensile Strength | 3.8Mpa |
| Shrinkage | ≤0.3% |
| Elongation | 510% |
USING INSTRUCTION of Condensation Cure Silicone Rubber For Pillar Molds
1- Take 100g of part A and add 2g of part B and mix the silicone rubber and curing agent evenly.
2- vacuum pumping
Without exception, this step takes less than 10 minutes. Otherwise, it will cause , and no more further steps will be available
3- Pouring mold or block mold of silicone rubber
The pouring way is an easy way to make molds, it's slowly and evenly pour into the mixed silicon rubber into the square frame. After the cross linking reaction.
Applicatons of Condensation Cure Silicone Rubber For Pillar Molds
MCSIL RTV-2 mold making silicone rubber are suited for reproduction of cement molding, concrete stones, artificial stones, plaster molding, figures, art objects, decoration molding, GRC products, gypsum products, resin products, PU molds, etc.
Package of Condensation Cure Silicone Rubber For Pillar Molds
Part A base silicone: 5kg, 20kg/drum, 25kg/drum or 200kg/drum
Part B C520 Curing Agent: 250g, 800g/bottle, 1kg/bottle
Certificates of condensation RTV2 Silicone Rubber For Cornice Molds, plaster Decorations
Storage of Condensation Cure Silicone Rubber For Pillar Molds
When stored at or below 30 C(85F) in the original unopened containers, silicone rubber Base and part B the Curing agent have a usable life of 12 months from the date of production. After 12 months stock, pls use the Stir to mixing the Part A silicone for some minutes, then the silicone can be use again, no influence for other performance.
RTV-2 silicones are specifically designed to replicate stones, marble, wood, and other construction materials, producing outstanding fidelity for every detail, including veins and surface texture. The various grades of architectural molding silicones enable builders to replicate accurately the look they desire while providing long mold life and excellent resistance against casting materials.
Benefits of MC Silicone
Ease of processing
High resin resistance increasing the number of cast parts
Low linear shrinkage for greater accuracy
Easy release of shapes, including large pieces and complex geometries
High compatibility with water-rich casting materials such as gypsum
Increased compatibility with high performance concrete
Dimensional stability due to very low shrinkage
High mechanical properties over a range of flexibility
Product Tags:
|
|

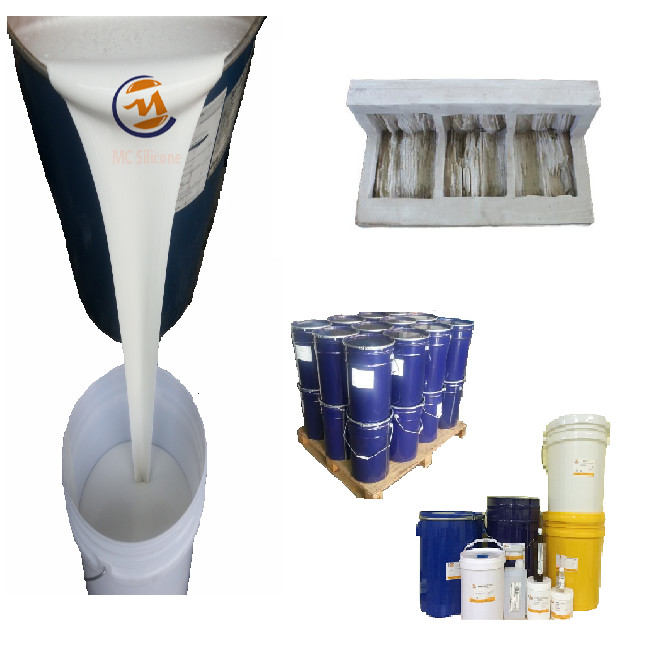

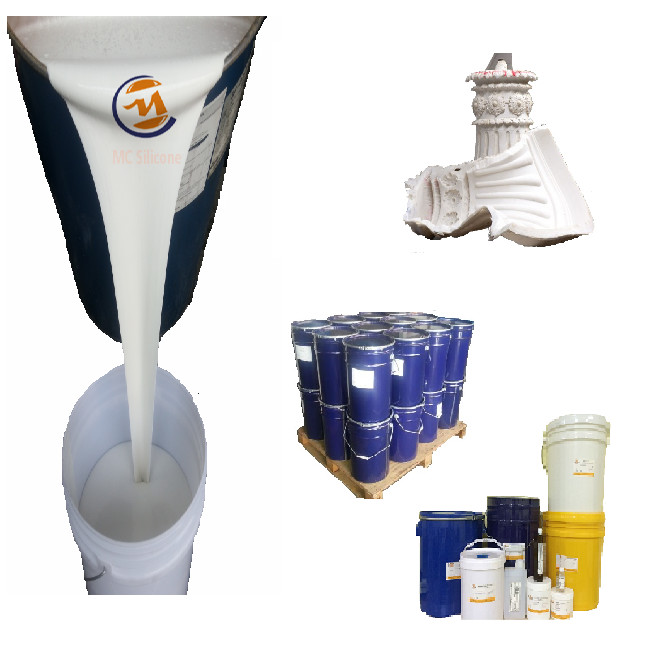

Condensation Cure Mold Making Silicone Rubber For Pillar Molds Images
|
